Three Phase Cross Bonding electrical link box plan

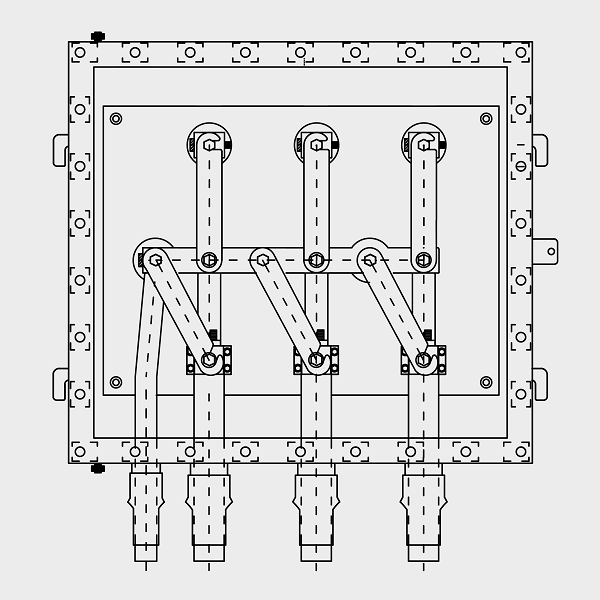

Three Phase Cross Bonding Link Box with SVL for Coaxial Cable (Joint Loc.)

KS.LB.U.CB.3SA.3.1
Three Phase Cross Bonding Link Box with SVL for Coaxial Cable (Joint Loc.)
KS.LB.U.CB.3SA.3.1
Protection class: IP68
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: Optional
---------------
Dimensions W.H.D (mm): 750×680×345
 Earthing electrical link box plan

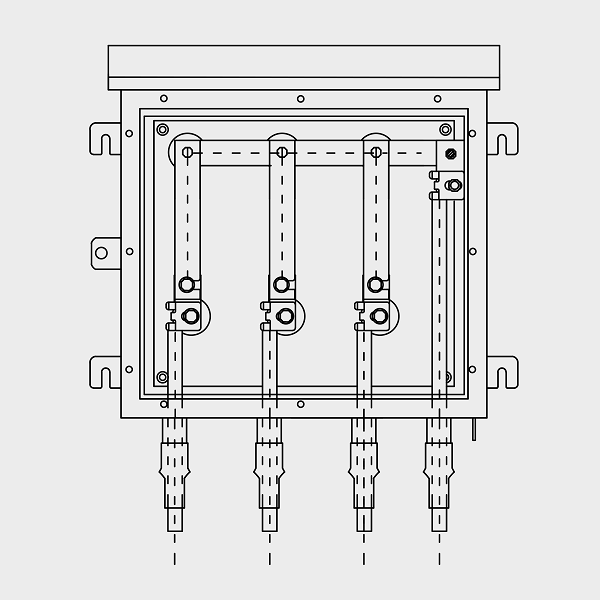

Three Phase Earthing Link Box for Single Cable (Termination Loc.)

KS.LB.W.OD.E.3.1
Three Phase Earthing Link Box for Single Cable (Termination Loc.)
KS.LB.W.OD.E.3.1
Protection class: IP66
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: N/A
---------------
Dimensions W.H.D (mm): 620×590×290
Cross Bonding Link Box electrical link box plan

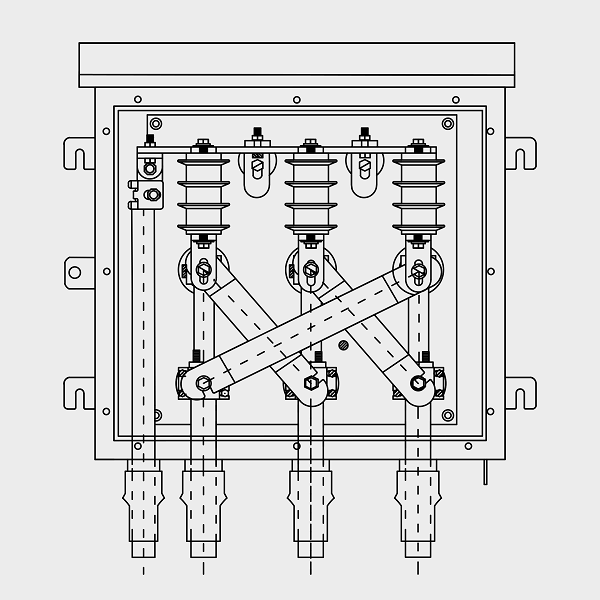

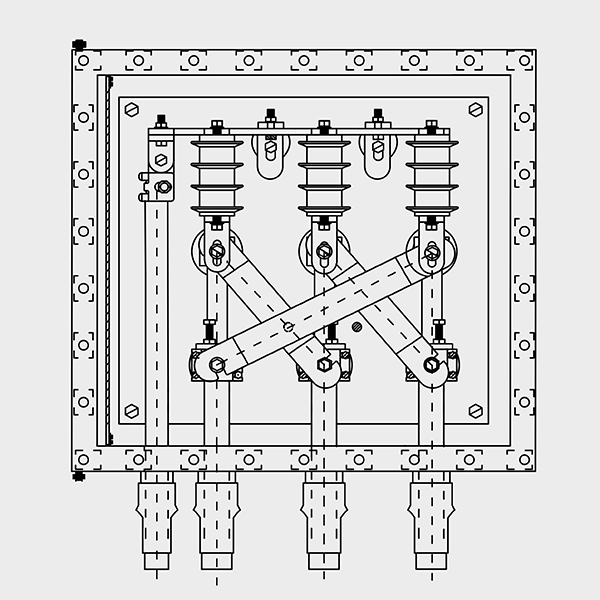

Three Phase Cross Bonding Link Box with SVL for Single Cable (Joint Loc.)

KS.LB.U.CB.3SA.6.1
Three Phase Cross Bonding Link Box with SVL for Single Cable (Joint Loc.)
KS.LB.U.CB.3SA.6.1
Protection class: IP68
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: Optional
---------------
Dimensions W.H.D (mm): 750×680×345
electrical link box plan

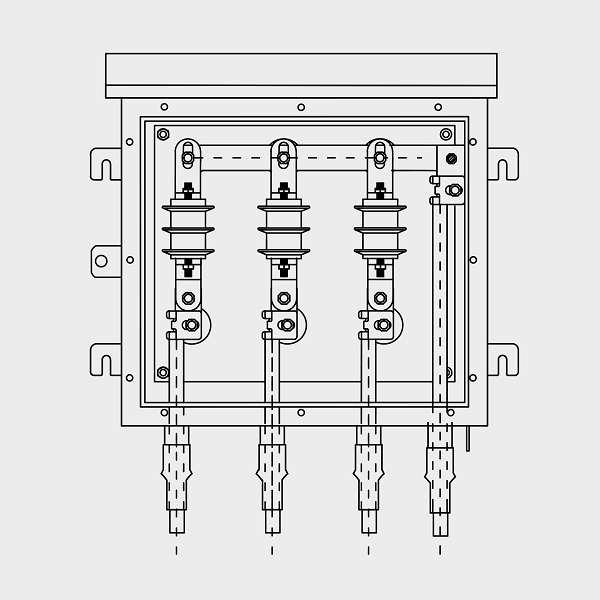

Three Phase Earthing Link Box with SVL for Single Cable (Termination Loc.)

KS.LB.W.OD.3SA.3.1
Three Phase Earthing Link Box with SVL for Single Cable (Termination Loc.)
KS.LB.W.OD.3SA.3.1
Protection class: IP66
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: Optional
---------------
Dimensions W.H.D (mm): 620×590×290
electrical link box plan

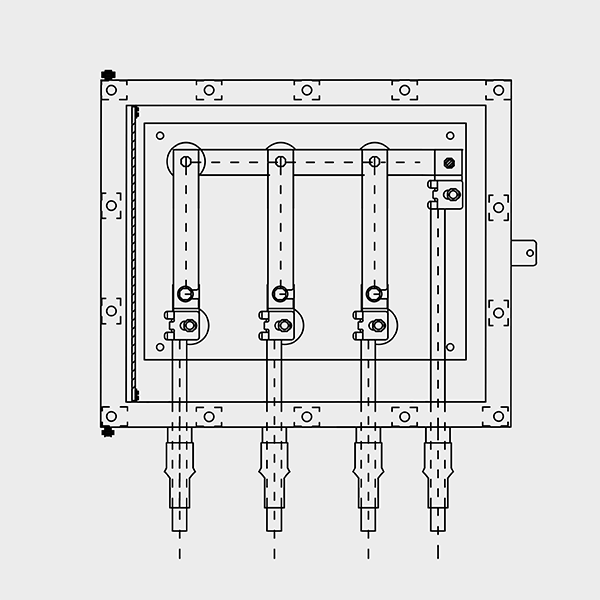

Three phase Earthing link Box for Single cable (Termination Loc.)

KS.LB.U.E.6.1
Three phase Earthing link Box for Single cable (Termination Loc.)
KS.LB.U.E.6.1
Protection class: IP68
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: N/A
---------------
Dimensions W.H.D (mm): 750×680×345
electrical link box plan

Three Phase Earthing Link Box for Single Cable (Termination Loc.)

KS.LB.W.IN.E.3.1
Three Phase Earthing Link Box for Single Cable (Termination Loc.)
KS.LB.W.IN.E.3.1
Protection class: IP66
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: N/A
---------------
Dimensions W.H.D (mm): 580×520×270
electrical link box plan

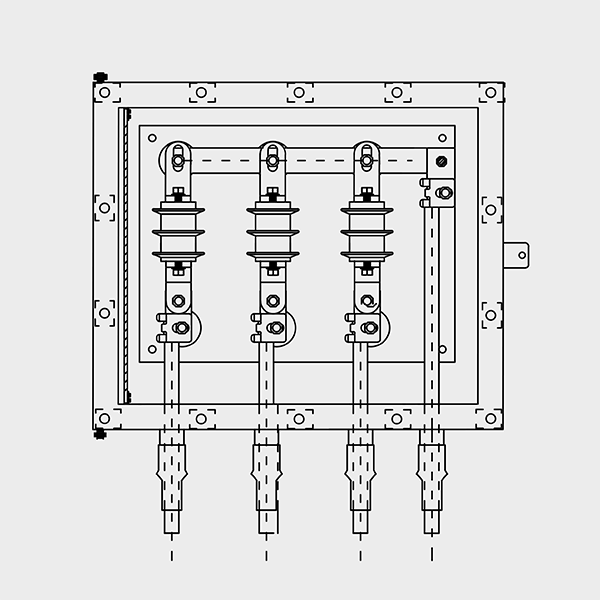

Three Phase Earthing Link Box with SVL for Single Cable (Termination Loc.)

KS.LB.U.3SA.3.1
Three Phase Earthing Link Box with SVL for Single Cable (Termination Loc.)
KS.LB.U.3SA.3.1
Protection class: IP68
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: Optional
---------------
Dimensions W.H.D (mm): 700×500×300
electrical link box plan

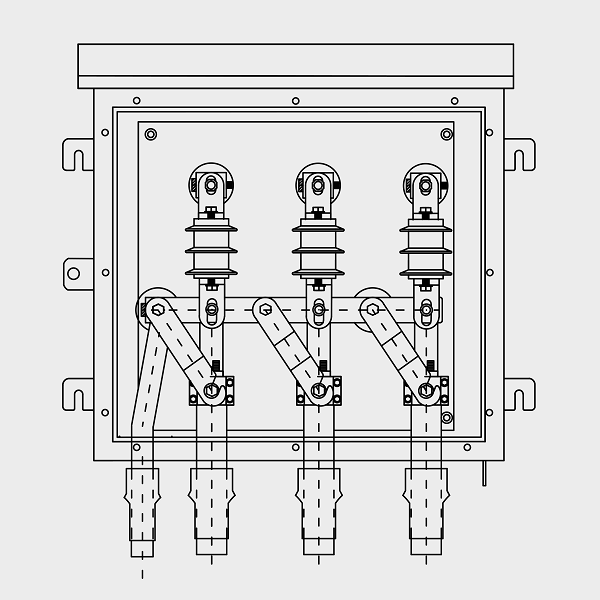

Three Phase Cross Bonding Link Box with SVL for Single Cable (Joint Lug.)

KS.LB.W.IN.CB.3SA.6.1-M
Three Phase Cross Bonding Link Box with SVL for Single Cable (Joint Lug.)
KS.LB.W.IN.CB.3SA.6.1-M
Protection class: IP66
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: Optional
---------------
Dimensions W.H.D (mm): 500×500×300
electrical link box plan

Three phase Earthing link Box for Single cable (Termination Loc.)

KS.LB.U.E.3.1
Three phase Earthing link Box for Single cable (Termination Loc.)
KS.LB.U.E.3.1
Protection class: IP68
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: N/A
---------------
Dimensions W.H.D (mm): 700×500×300
electrical link box plan

Three Phase Earthing Link Box with SVL for Single Cable (Termination Loc.)

KS.LB.W.IN.3SA.3.1
Three Phase Earthing Link Box with SVL for Single Cable (Termination Loc.)
KS.LB.W.IN.3SA.3.1
Protection class: IP66
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: Optional
---------------
Dimensions W.H.D (mm): 580×520×270
electrical link box plan

Three Phase Cross Bonding Link Box with SVL for Single Cable (Joint Lug.)

KS.LB.U.CB.3SA.6.1-M
Three Phase Cross Bonding Link Box with SVL for Single Cable (Joint Lug.)
KS.LB.U.CB.3SA.6.1-M
Protection class: IP68
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: Optional
---------------
Dimensions W.H.D (mm): 550×550×300
electrical link box plan

Three Phase Cross Bonding Link Box with SVL for Single Cable (Joint Lug.)

KS.LB.W.IN.CB.3SA.6.1-M
Three Phase Cross Bonding Link Box with SVL for Single Cable (Joint Lug.)
KS.LB.W.IN.CB.3SA.6.1-M
Protection class: IP66
-----------------
Material box:
Stainless Steel (AISI 304L or 316L)
---------------
Connection material link:
Tinned Copper
---------------
SVL: Optional
---------------
Dimensions W.H.D (mm): 500×500×300
